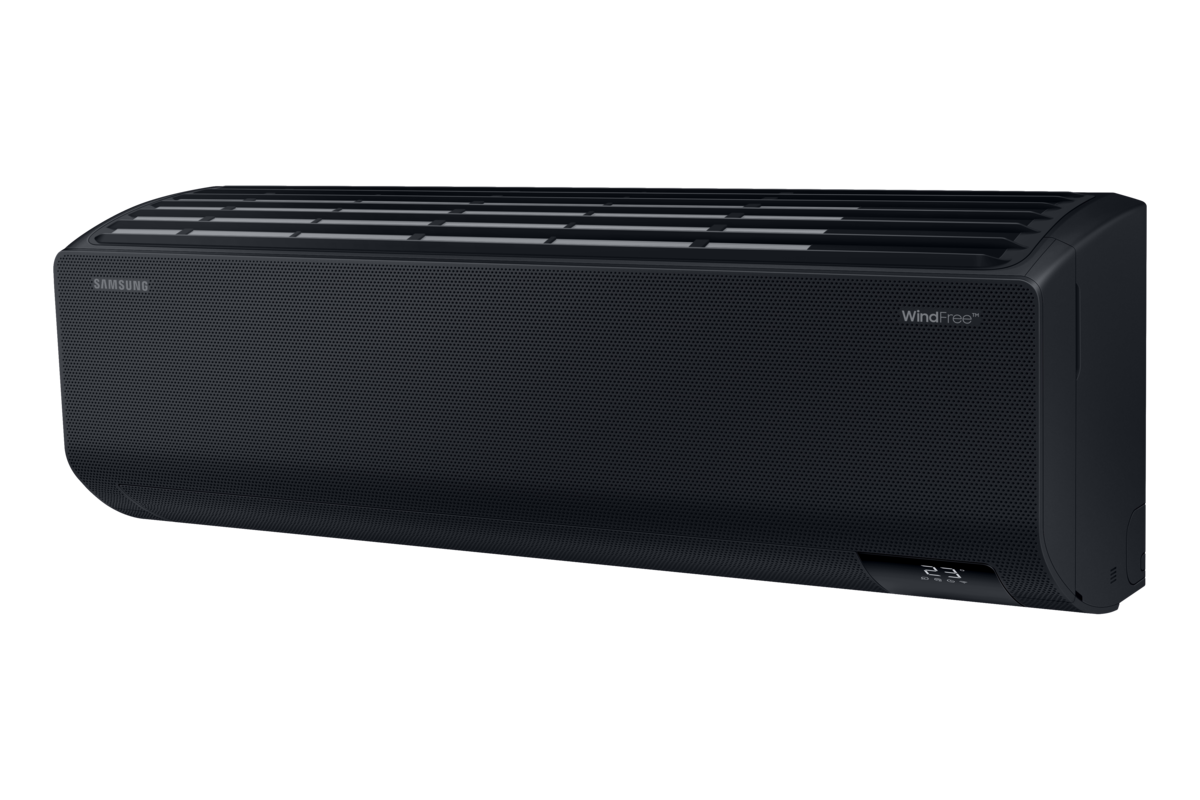

Wall unit Windfree Avant NASA 3.5 KW
Wall unit Windfree Avant NASA 3.5 KW
Regular price
€689,50 EUR
Regular price
€937,40 EUR
Sale price
€689,50 EUR
Unit price
/
per
Couldn't load pickup availability
- Wall unit, including IR remote control
- Smart Wi-Fi, Tri-Care Filter and Easy Filter
- Cooling capacity: 3.5 kW
- Heating output: 4.0 kW
- “Windfree” function enables cooling without draughts
Product description
- Zero standby power | self-cleaning | whisper quiet
- Tri-Care filter, ensures virus and bacteria-free air
- SMART Wi-Fi with artificial intelligence and pattern recognition
- “Windfree” function enables cooling without draughts
- 3D Auto-Air-Swing | up & down | left & right
- Including infrared remote control
- Cooling | Heating | Dehumidifying | Ventilating
- Automatic mode change
- Board with alphanumeric display for precise diagnostics
- Air intake not visible | 4 fan speeds
- Optional: Wired remote control with real-time, daily and weekly timer and room temperature sensor
- Optional: Fault reporting and ON | OFF contact
- Automatic restart
- Good sleep mode | Smart saver mode
- Antibacterial and anti-allergy coated heat exchanger
- Full HD filter
- Device color white, similar to RAL 9010
Indoor unit
- Attractive housing made of impact-resistant plastic
- Air intake at the head over the entire evaporator width
- Air outlet in the lower part of the device
- 3D automatic air control for optimal supply air distribution in the room or air flow can be individually adjusted
- “Windfree” function for cooling without draughts
- Cleanable Full HD filter, easily removable upwards
- Fan can be switched to four speeds for particularly quiet operation
- Direct drive motor with winding protection
- Evaporator made of CU pipe with pressed-on aluminum fins
- Electronic control with microprocessor-controlled operating sequence for optimum climate comfort
- Switching control via infrared remote control (distance up to 10 m) with easy-to-understand LCD display or optional cable remote control with real-time, daily and weekly timer and room temperature sensor
| Writer: | Value | |
|---|---|---|
| Internal dimensions (W/H/D) | mm | 889x299x215 |
| Weight inside | kg | 9.9 |
| Writer: | Value | |
|---|---|---|
| Nominal cooling capacity | kW | 3.5 |
| Nominal heating output | kW | 4.0 |
| Dehumidification performance | l/h | 1.5 |
| Writer: | Value | |
|---|---|---|
| Sound pressure indoor unit | dB | 40/19 |
| Sound power level indoor unit | dB | 57 |
| Writer: | Value | |
|---|---|---|
| Nominal power consumption cooling | kW | 0.04 |
| Nominal power consumption heating | kW | 0.04 |
| Nominal current consumption cooling | A | 0.4 |
| Nominal current consumption heating | A | 0.4 |
| Power supply | V | 230 |
| Electrical connection | Ph | 1 |
| Writer: | Value | |
|---|---|---|
| Liquid line connection | mm | 6.35 |
| Suction gas line connection | mm | 9.52 |
|
Refrigerant
|
R32 | |
| Writer: | Value | |
|---|---|---|
|
type
|
Cross-flow | |
| Performance | kW | 0.027 |
| Air volume | m³/h | 630 |
| Writer: | Value | |
|---|---|---|
| Cooling setting limits | °C | 18 to 30 |
| Heating setting limits | °C | 16 to 30 |
- All SAMSUNG air conditioning systems are power-controlled and equipped with a restart after a power failure
- Nominal cooling capacity at room temperature 27°C, outside temperature 35°C
- Nominal heating output at room temperature 20°C, outside temperature 7°C
- Sound data measured in an anechoic chamber at a distance of 1 m according to ISO 3741
- Electrical supply for all devices possible via the outdoor unit
- Fuse slow - according to local regulations
Procurement goods delivery time approx. 1 week
