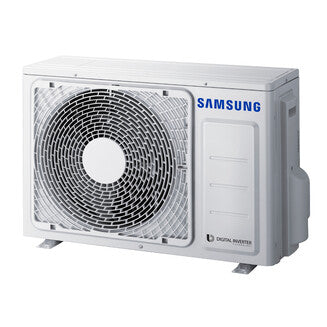

FJM outdoor unit (for 2-3 IE) 6.8 KW

FJM outdoor unit (for 2-3 IE) 6.8 KW

€1.766,80 EUR
€2.287,80 EUR €1.766,80 EUR
Sale Sold out
  • Outdoor unit for 2 to 3 universal indoor units of your choice
  • Easy installation and commissioning
  • Cooling capacity: 6.8 kW
  • Heating output: 8.0 kW
  • Sine wave controller
  • BLDC double-roller compressor
  • Double sound insulation around the compressor

Product description

  • ECO S-Inverter Multi | whisper quiet
  • Cooling | Heating | Dehumidifying | Ventilating
  • The rated power can be exceeded by up to 75%
  • Depending on the system, 2 to 5 indoor units can be connected
  • Board with error display for precise diagnosis
  • Automatic restart
  • All cooling machines meet the Eco standard and have the best SEER and SCOP values
  • Only one power supply. The indoor units are supplied via the cooling machine
  • Automatic or manual addressing

Outdoor unit

  • The Free Joint Multi Inverter cooling machine has a weatherproof sheet steel housing with a torsion-free base frame for outdoor installation
  • The device is equipped with a TWIN BLDC inverter double rotary piston compressor and is therefore vibration-damped, extremely quiet and energy-saving
  • The newly developed sickle-shaped fan is directly driven, electronically balanced and ensures whisper-quiet operation
  • The refrigeration system is pre-filled with the refrigerant R32 at the factory
  • The FJM Inventer machine is the ideal solution for air conditioning different rooms with different indoor units from the Free Joint Multi series with a super quiet, compact cooling machine
  • In terms of system control and communication, this chiller is compatible with all Samsung DVMS VRF systems

Dimensions Climate

Writer: Value
Dimensions (W/H/D) mm 880x798x310
Weight kg 57.5

Climate performance data

Writer: Value
Nominal cooling capacity kW 6.8
Nominal heating output kW 8.0

Sound data

Writer: Value
Sound pressure dB 48
Sound power level dB 64

Electrical data

Writer: Value
Nominal power consumption cooling kW 1.8
Nominal power consumption heating kW 1.81
Nominal current consumption cooling A 8.1
Nominal current consumption heating A 8.2
max. current consumption A 17.5
Power supply V 230
Electrical connection Ph 1

Connections, lines and refrigerants

Writer: Value
max. cable length M 50
max. height difference M 15
max. height between indoor unit M 7.5
Liquid line connection mm 6.35
Suction gas line connection mm 9.52
Refrigerant
R32
pre-filled refrigerant quantity kg 2

Energy efficiency (COP/EER) or energy class according to Eco Design (EU Directive 626/2011)

Writer: Value
Cooling EER
 3.78
Heating COP
4.42
Energy class cooling
7.75 (A++)
Energy class heating
4.32 (Rating: A+)

Compressor data

Writer: Value
type
 BLDC double-roller piston
Model name
KTF235D22UMV
Lubricant Type
ESTER OIL VG74
Lubricant - Quantity
670
Performance kW 7.65

Fan data

Writer: Value
type
 propeller
Performance kW 0.04
Air volume m³/h 2850

Application limits

Writer: Value
Application limits cooling °C -10 to 46
Application limits heating °C -15 to 24
Number of connectable indoor units Pcs. 3
  • All SAMSUNG air conditioning systems are power-controlled and equipped with a restart after a power failure
  • Nominal cooling capacity at room temperature 27°C, outside temperature 35°C
  • Nominal heating output at room temperature 20°C, outside temperature 7°C
  • Nominal power at 5m cable length without height differences
  • Sound data measured in an anechoic chamber at a distance of 1 m according to ISO 3741
  • Pre-filled refrigerant quantity: Line length according to design program DVM-Pro
  • Electrical supply for all devices possible via the outdoor unit
  • Fuse slow - according to local regulations

Scope of delivery

  • Outdoor unit

Procurement goods delivery time approx. 1 week
